high quality manual paper die cutting machine with reasonabal price
Specifications

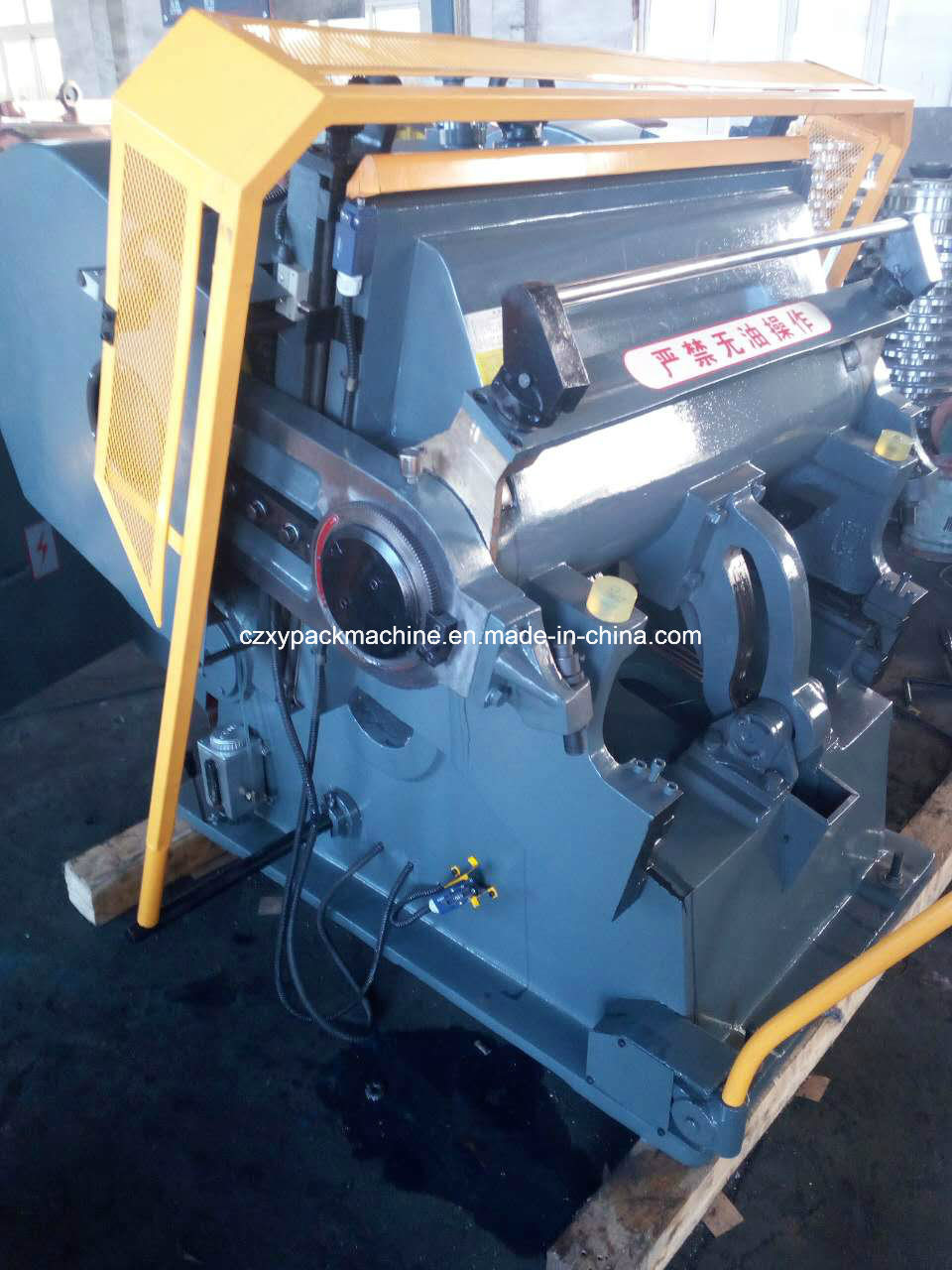

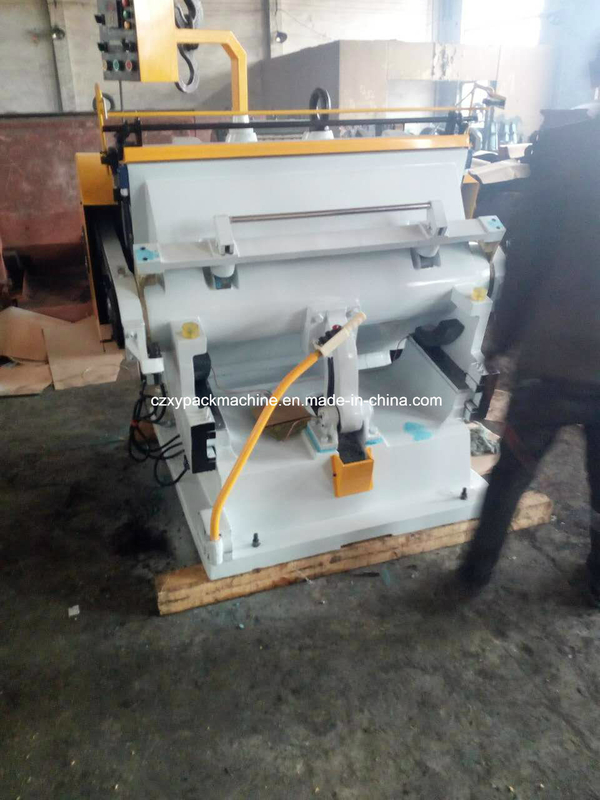

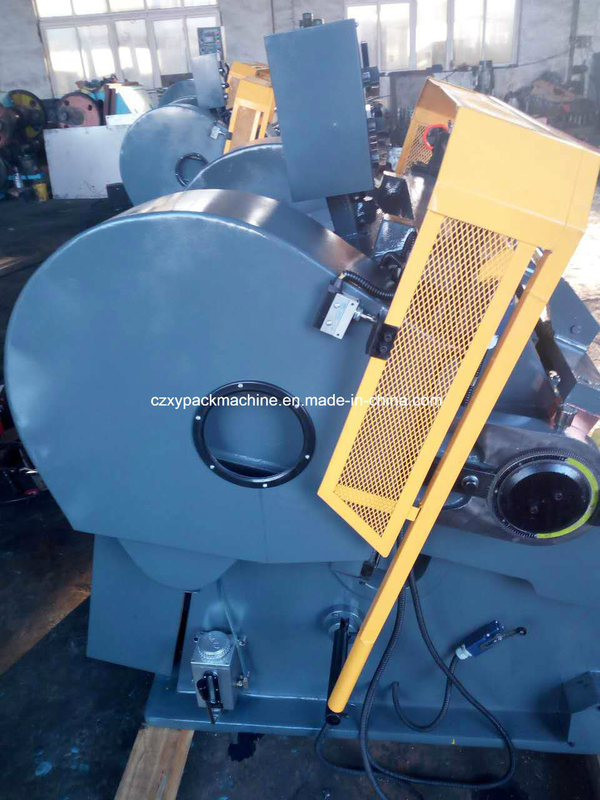

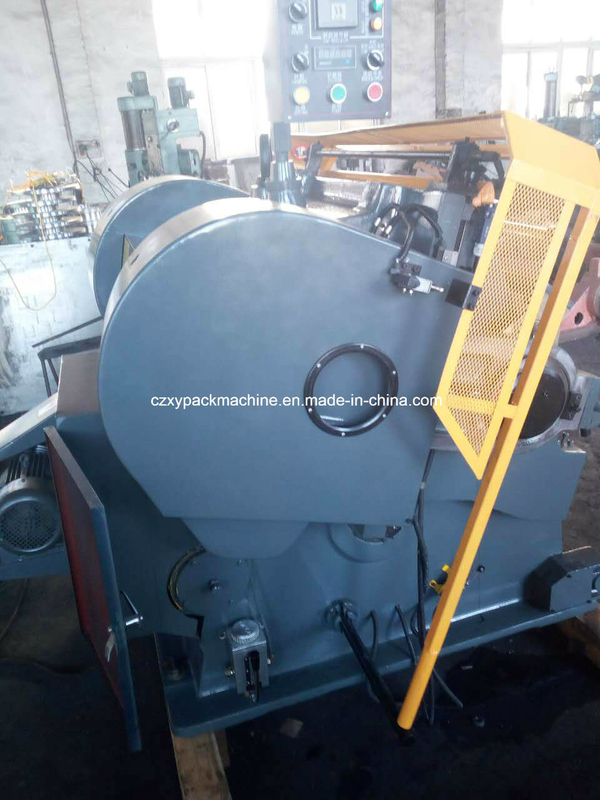

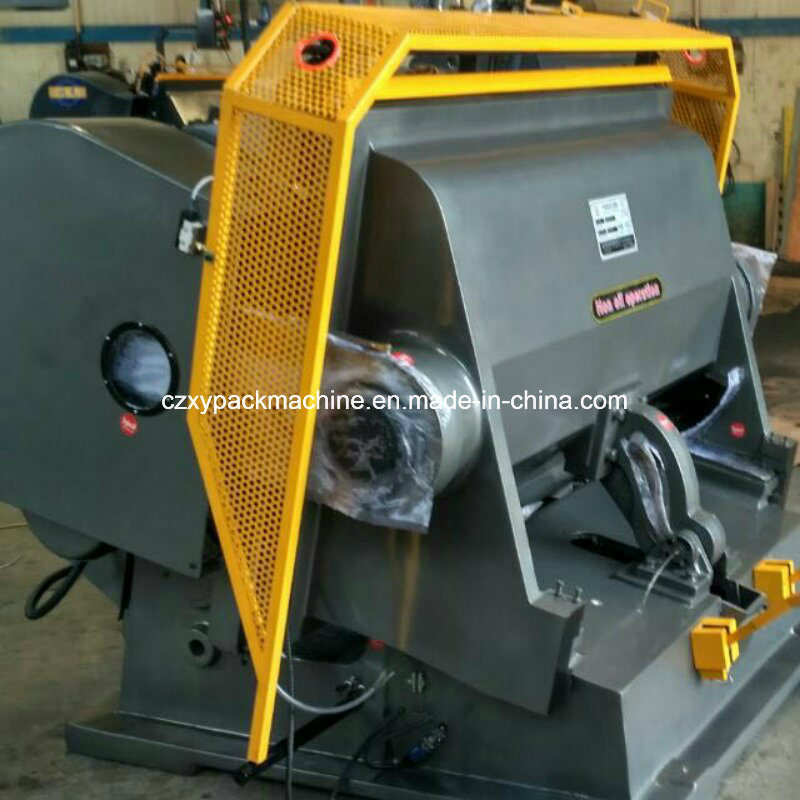

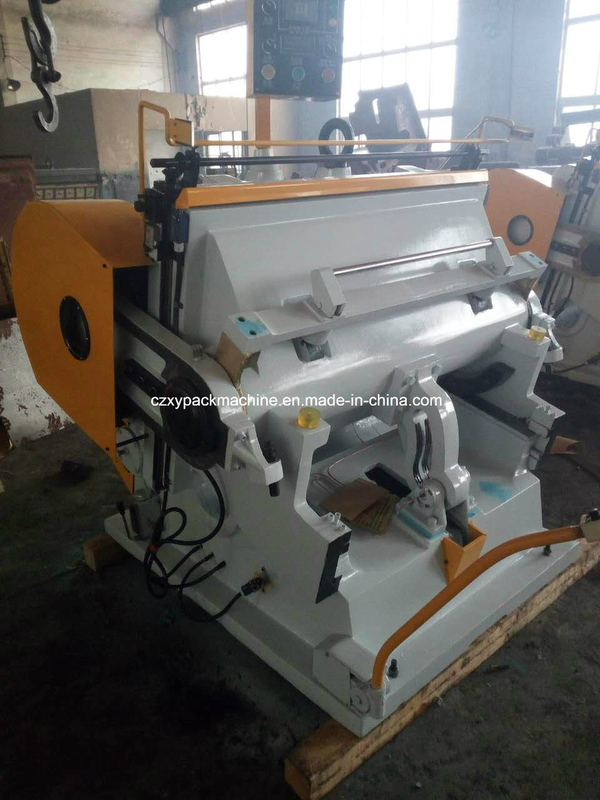

Flat creasing and die cutting machine
1.High die cuttng efficiency
2.Easy to operate
3.Running steady
4.CE,ISO certificate 1.Technical Parameters: | Model | ML-750 |
| Max effective cutting Size | 750*520mm |
| Working speed | 28±2 strokes/min |
| Creasing length | <15m |
| Motor power | 2.2kw |
| Net weight | 2000kg |
| Overall size | 1260*1350*1280mm |
2. Functions and Characteristics: 1) Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light operated insurance to makes the machine safety and reliable. 2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable. 3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil supplying, 4) Three functions including single piece pressing cutting, continuous pressing cutting and time- delay when start machine, the delay time can be adjusted. 3. Components and Place of Origin: | Item | Place of Origin |
| Copper bush | Tin bronze |
| Steel plate | Stainless steel |
| Motor | Hengshui |
| Appliance | Chnt |
| Bearing | Hrb, Wafangdian |
| Travel switch(Insurance) | Schneider |
Product Overviews
. Carton box finished picture:
Our Services
1. OEM service are available. 2. TradeManager online, also contact by Email, Skype. MSN. 3. To solve problems by pictures/videos. 4. Engineers are available service abroad. PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance. Workshop Pictures: Customer Visiting Picture:
